Office Nanogrid

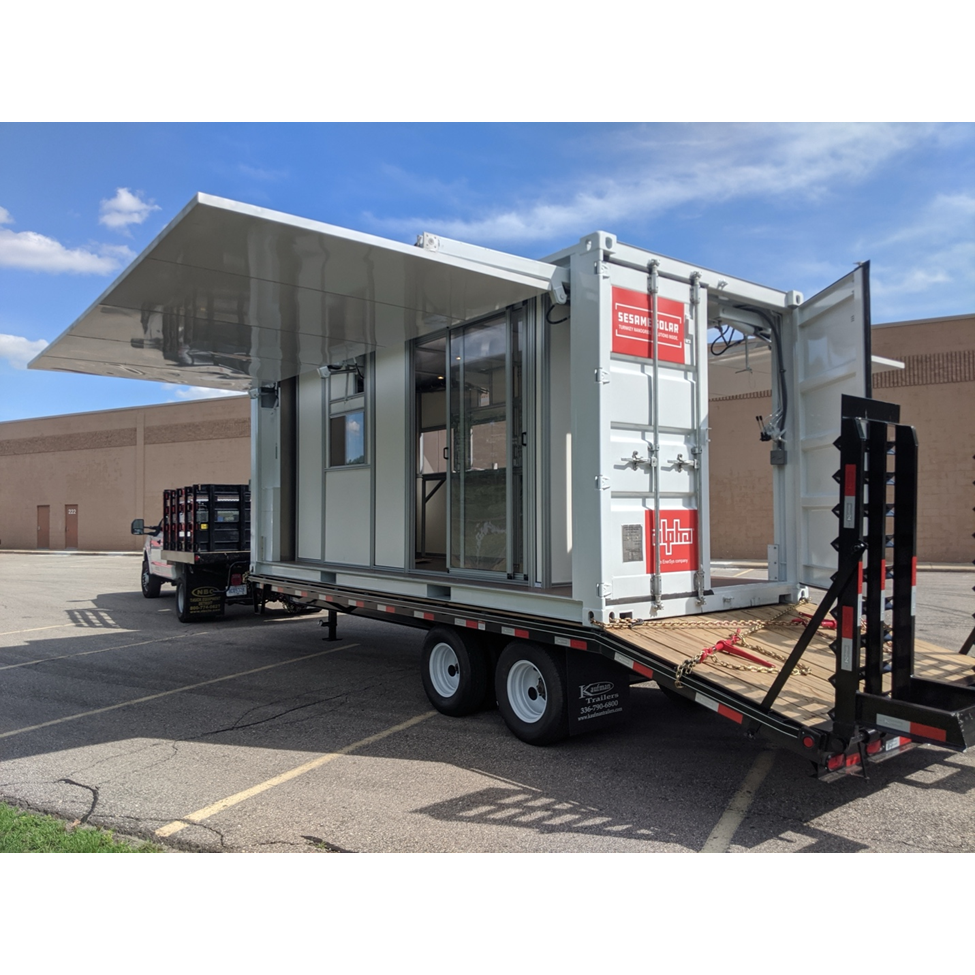

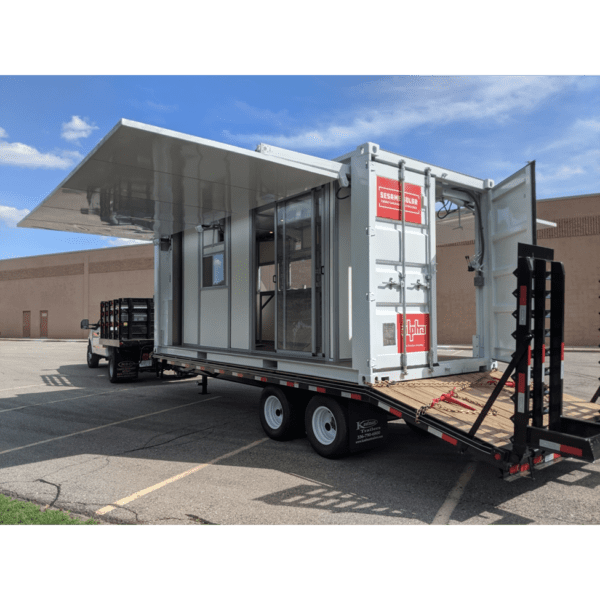

The Mobile Nanogrid Office Solution provides reliable, off-grid power, and lets you to take your business to your customer or worksite. Can be modified for Construction, Extraction or Pop-Up Retail use. The Office Nanogrid offers essential office infrastructure, including workstations, desks, chairs, storage cabinets, and necessary office equipment to support operations.

SKU: NC / NC_H / NT / NT_H2 Categories: ,

Description

COMMUNICATIONS: Software for remote monitoring and alerts (weather, motions, hazards); Performance reports (kW produced and consumed at location, date/hours used, CO2saved, diesel and fueling costs saved); Class L 40-60amp, 24V, 110V connection ports; 5G Inside for community access plus Sat Com options – StarLink or similar

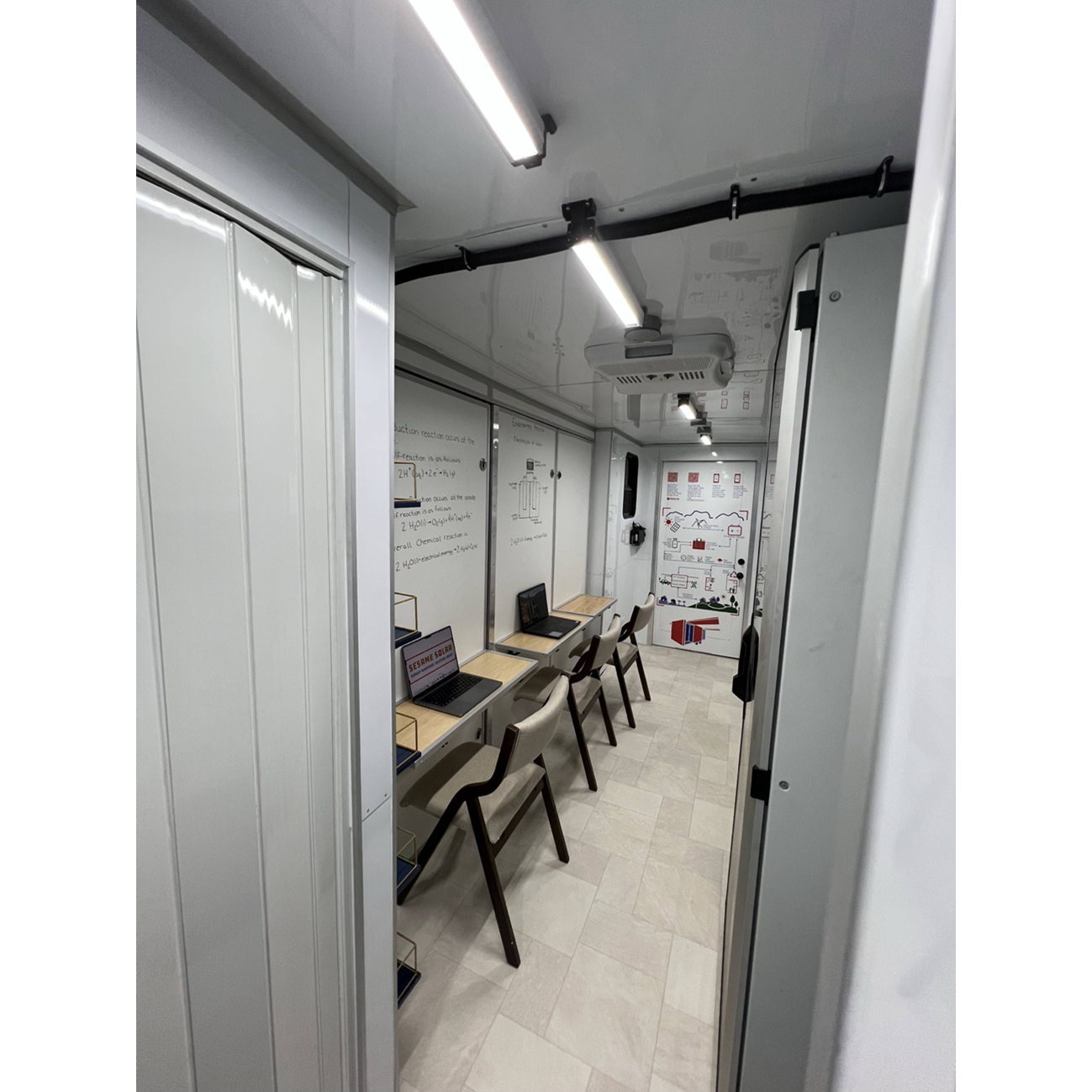

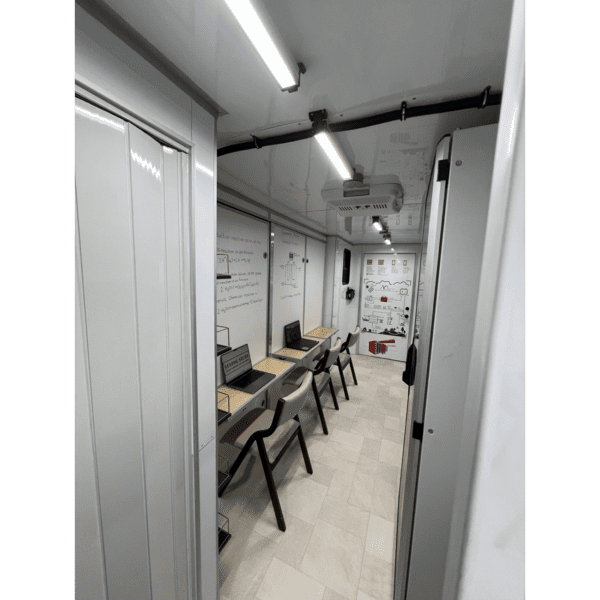

INTERIOR: Foldable worktables and chairs; Tablet for device monitoring; Fire extinguisher; RV HVAC system; Anti-skid flooring; Mini Refrigerator and Sink Area; Hightop Worktable; Surface mount LED lighting; Power outlets with USB; Lockable storage; Mounts for Display Screen; Floating shelves; Whiteboard/Pegboard; Air to Water Generator

EXTERIOR: Weatherproof Audio / Video System; Power outlets with USB; Weatherproof LED lighting; Foldable workbenches

EV CHARGING TECHNICAL SPECS:
Model# NC: 4 – 8 kW Solar Array Power, 35 – 75 kWh Total Battery Storage, 8 – 12 Inverter Rating (110/220 VAC), 20 Ft. Closed Length, 8 Ft. Closed Width, 8 Ft. Interior Height, 6000 Lbs. Weight, Conex Container Form Factor

Model# NC_H: 6 – 10 kW Solar Array Power, 45 – 105 kWh Total Battery Storage, 12 – 15 Inverter Rating (110/220 VAC), 20 Ft. Closed Length, 8 Ft. Closed Width, 8 Ft. Interior Height, 4 – 8 kW Fuel Cell, 500 – 1500 NL/h Electrolyzer, 1.2 – 3.6 kg Hydrogen Storage, 8000 – 12500 Lbs. Weight, Conex Container Form Factor

Model# NT: 3 – 5 kW Solar Array Power, 25 – 45 kWh Total Battery Storage, 8 – 12 Inverter Rating (110/220 VAC), 18 – 20 Ft. Closed Length, 8.5 Ft. Closed Width, 8 Ft. Interior Height, 9990 Lbs. Weight, Dual or Tri-Axle Form Factor

Model# NT_H: 6 – 10 kW Solar Array Power, 45 – 105 kWh Total Battery Storage, 12 – 15 Inverter Rating (110/220 VAC), 20 Ft. Closed Length, 8.5 Ft. Closed Width, 8 Ft. Interior Height, 4 – 8 kW Fuel Cell, 500 – 1500 NL/h Electrolyzer, 1.2 – 3.6 kg Hydrogen Storage, 9990 – 14000 Lbs. Weight, Dual or Tri-Axle Form Factor
