Description

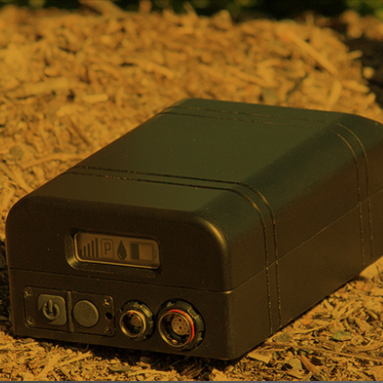

Small Form Factor Network Relay. Rechargeable internal battery. Leave behind as unattended relay device
Size (R/T Only): 4.06 H x 2.50 W x 1.46 D in. (103.12 x 63.50 x 37.08 mm)
Weight (R/T only): 16 oz (0.45 kg)
Frequency Range: LUHF: 225-450 MHz / U-UHF: 698-970 MHz / L/S Bands: 1250–2600 MHz
Configurable Bandwidth: 1.2, 3.6, 10, 20, 40 MHz
Transmit Power: 100mW, 250mW, 500mW, 1W, 2W
Input Power: 5 V to 20 V
Environmental: MIL-STD-810G
Operating Temperature: -20°C to +55°C (-4°F to +131°F)
Connectors: USB On-the-Go, RF TNC, GPS SMA
Data Rate: Pt. to Pt., up to 32 Mbps (1-hop)
Waveform: TSM Release 6
